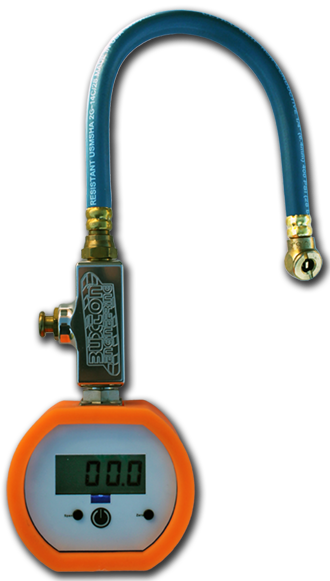

Digital Tire Pressure Gauge - Buxton Engineering, Inc.

SPECIFICATIONS

Storage temperature –40 to 203°F (–40 to 95°C)

Operating temperature . . . . . . . . . . . . . . . . . . . . . . . –4 to 185°F (–20 to 85°C)

Compensated temperature . . . . . . . . . . . . . . . . . . . . . . 32 to 158°F (0 to 70°C)

Accuracy (linearity, hysteresis, repeatability)

Standard: ±0.25% of full scale ±1 least significant digit

Option: ±0.1% full scale ±1 least significant digit

Option: NIST traceable test report and data

Temperature Stability (relative to 77°F or 25°C)

±1% full scale for offset and span, 32 to 158°F (0 to 70°C) typical

Display (update rate)

3 readings per second nominal display update rate

Sensor Piezoresistive sensor Custom 1C is bonded to the

316 SS diaphragm. No moving parts mean stable readings,

low zero drift and long life to at least 1 million pressure cycles.

Competitors often use a bonded strain gauge, which tends

to drift resulting in less stable reading and repeatability problems

Auto Shutoff (30 minutes standard)
